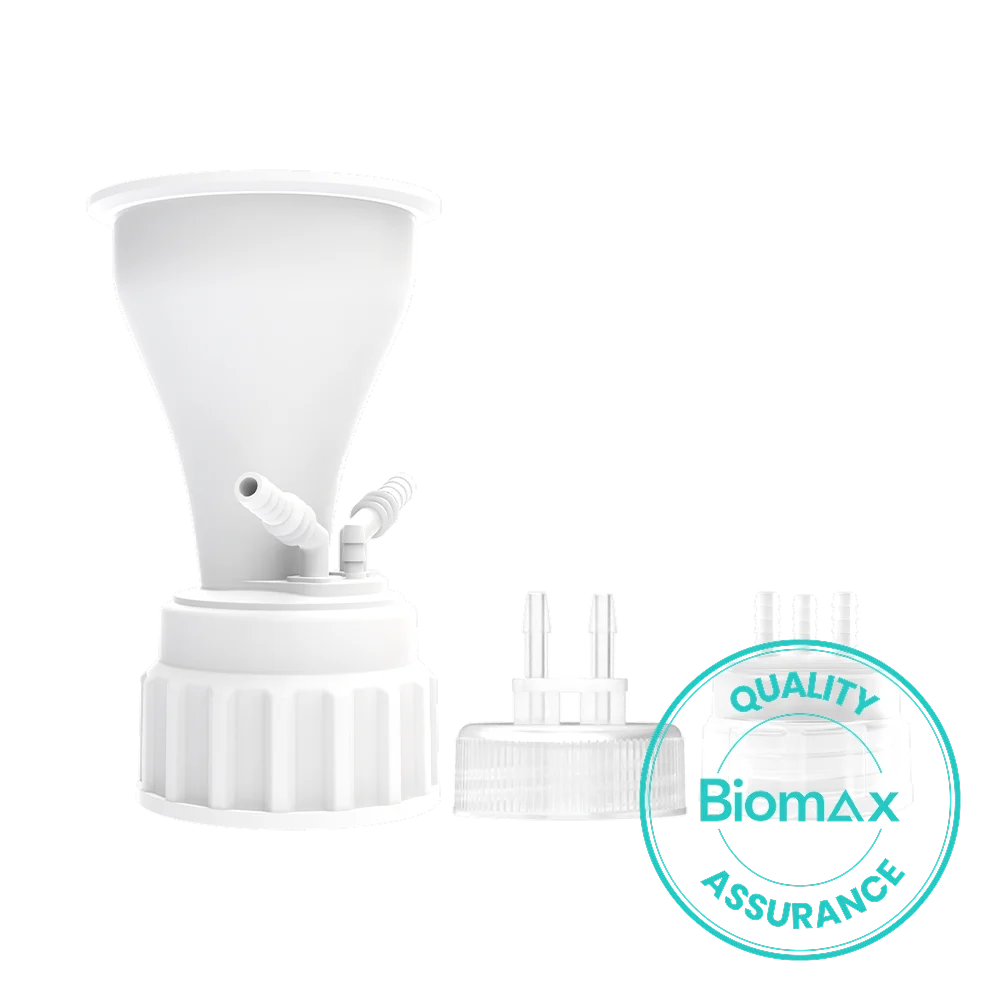

BioMax® Aseptic Closures
The BioMax Aseptic Closure is designed to deliver a safe, leak-proof and sterile interface for transferring fluids into rigid containers. It is produced using medical-grade polypropylene (PP), and these closures help in contamination-free sampling, feeding and transfer operations across the upstream and downstream bioprocesses. These are available in various port sizes and thread formats for different usages.
Aseptic Closure
Available in Polypropylene (PP), HDPE material options
Port Options: Available in 2 and 3-port configurations (GL25, GL32, GL45, 38 mm, 45 mm, 53 mm, 70 mm, 83 mm (With or without Powder Port)
Closures can be configured with various tubing sizes, powder ports, and sampling interfaces
Applications
- Aseptic transfer of culture media, buffers, and reagents
- Sampling and feeding during cell culture or fermentation
- Integration into carboy and bottle assemblies for closed-system operations
- Ideal for aseptic storage and transport of bioprocess fluids
Benefits
- Aseptic Integrity: Designed for one-time use to eliminate the need for cleaning and sterilisation cycles, reducing contamination risks and process validation requirements.
- Robust Fluid Path Control: Clamps enable quick, secure access or shut-off of fluid lines without tools, helping maintain closed fluid paths and sterility.
- Flexible Configurations: Fittings are available in multiple geometric configurations (e.g., Tee, Cross, Straight, Reducer), allowing complex fluid routing and system customization.
- Compatibility: Engineered to integrate with a broad range of tubing sizes and materials, ensuring adaptability in diverse process assemblies.
Certifications
- Manufactured in an ISO Class 10K cleanroom environment
- USP Class VI, US FDA 21 CFR compliant raw materials
- Non-pyrogenic, non cytotoxic, RNase/DNase free, endotoxin-free
- TSE/BSE compliant
- Free from fillers, plasticizers, and harmful additives, ensuring complete bioprocess purity
PRODUCT VARIANTS TABLE
| CAT CODE | DESCRIPTION | Vessel Type | Port Dimensions | Qty/Pack |
|---|---|---|---|---|
| BCPP-38-2-1 | BioMax 38mm Feeder Cap Non-Vented cap 38-430mm with 2 port molded, PP | Erlenmeyer Flasks, Media Bottle | 1 Port of 1/4”HB and 1/8″ HB each | 1 |
| BCPP-45-2-1 | BioMax 45mm Feeder Cap Non-Vented cap 45-430mm with 2 port molded, PP | Erlenmeyer Flasks, Media Bottle | 2 Ports of 1/4″ HB | 1 |
| BCPP-70-2-1 | BioMax 70mm Feeder Cap Non-Vented cap 70-430mm with 2 port molded, PP | Erlenmeyer Flasks | 2 Ports of 1/4″ HB | 1 |
| BCPP-GL25-2-1 | BioMax GL25 cap with 2 port, PP | Glass Bottles | 2 Ports of 1/8″ HB | 1 |
| BCPP-GL32-2-1 | BioMax GL32 cap with 2 port, PP | Glass Bottles | 2 Ports of 1/8″ HB | 1 |
| BCPP-GL45-2-1 | BioMax GL45 cap with 2 port, PP | Glass Bottles | 2 Ports of 1/4″ HB | 1 |
| BCPP-53-3-1 | BioMax 53mm Feeder Cap Non-Vented with 3 port, PP | Erlenmeyer Flasks, Media Bottle | 3 Ports of 1/4″ HB | 1 |
| BCPP-83-3-1 | BioMax 83mm Feeder Cap Non-Vented with 3 port, PP | Carboys | 2 Ports of 3/8″ HB and 1/4″ HB each | 1 |
| BCPP-83-3-2 | BioMax 83mm Feeder Cap Non-Vented with 3 port, PP | Carboys | 2 Ports of 1/2″ HB and 1 Port of 1/4″ HB | 1 |
| BCPP-30-2-1 | BioMax 30 mm Feeder Cap Non Vented cap with 2 port, PP | Centrifuge Tube | 2 Ports of 1/8″ HB | 1 |
